Webpack热更新原理

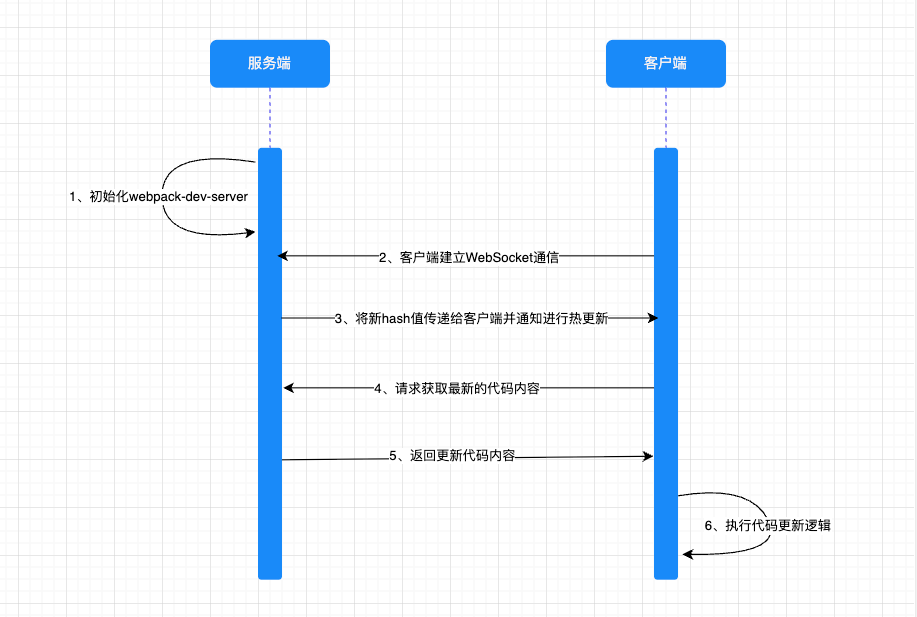

一、整体流程
整体流程可以分为三个阶段即服务端初始化、客户端初始化、代码热更新。
服务端负责监听代码变化，并将新 hash 值返回给客户端、通知客户端进行热更新。
客户端创建 WebSocket 对象，建立服务端通信，接收服务端消息。
客户端比对 hash 值不一致时，会请求获取更新代码内容，执行代码更新逻辑。

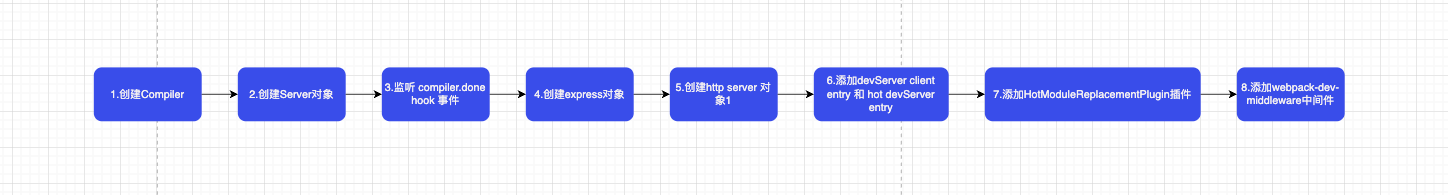

1.1、webpack-dev-server 对象初始化
- 创建 Compiler 对象
- 创建 Server 对象
- 监听 compiler done hook
- 创建 express 对象
- 创建 http server 对象
- 添加 devServer client entry 和 hot devServer entry
- 添加 HotModuleReplacementPlugin
- 添加 webpack-dev-middleware 中间件

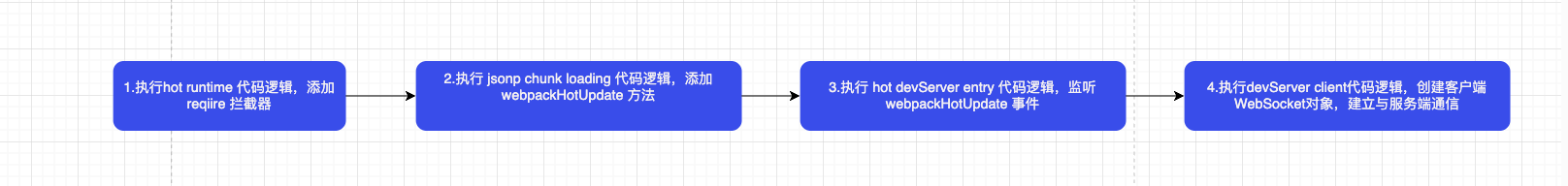

1.2、客户端执行逻辑
- 执行 hot runtime 代码逻辑，添加 require 拦截器
- 执行 json chunk loadng 逻辑，添加 webpackHotUpdate 方法
- 执行 webpack/hot/dev-server.js 代码逻辑，监听 webpackHotUpdate 事件
- 执行 client/index.js 代码逻辑，创建客户端 WebSocket 对象，建立服务端通信

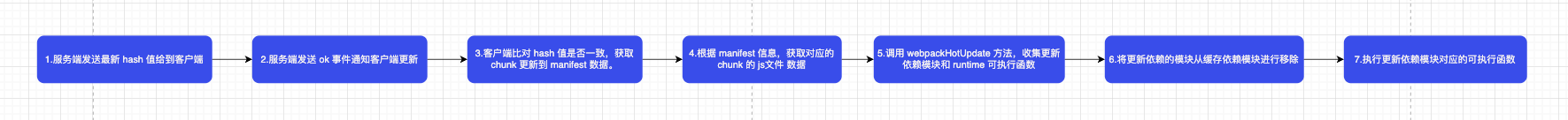

1.3、代码热更新
- 服务端派发
hash类型消息，将新hash值传递给客户端 - 服务端派发
ok类型消息，通知客户端进行热更新 - 客户端比对
hash值不一致，获取chunk更新manifest - 根据
manifest信息，获取chunk更新内容 - 调用
webpackHotUpdate方法，收集更新依赖模块和runtime的可执行函数 - 将更新依赖模块从依赖模块缓存数据中移除
- 执行更新依赖对象对应的可执行函数
二、项目初始化
创建初始化项目，并配置 webpack.config.js，配置如下
javascript
const HtmlWebpackPlugin = require('html-webpack-plugin');
const path = require('path');
const isDevMode = process.env.NODE_ENV === 'development';
module.exports = {
target: 'web',
entry: './src/index.js',
output: {
path: path.resolve(__dirname, 'dist'),
filename: 'bundle.js',
},
// 插件
plugins: [
new HtmlWebpackPlugin({
template: path.resolve(__dirname, 'public/index.html'),
}),
],
devtool: 'source-map',
// 设置开发模式
mode: isDevMode ? 'development' : 'production',
// 开发服务器
devServer: {
hot: true, // 热更新
},
};在执行 webpack serve 命令时，根据 webpack 脚手架源码执行流程分析出还是执行的 webpack-dev-server 包中的 lib\Server.js 的 Server类，并且执行类中的 start 函数。
在项目中创建 bin 目录并创建 index.js，通过 scripts 执行 index.js 模拟实现执行 webpack serve 命令。
javascript
"scripts": {
"start": "cross-env NODE_ENV=development node ./bin/index.js"
},bin/index.js 内容如下
javascript
// bin/index.js
const Webpack = require('webpack');
// webpack.config.js 配置
const webpackConfig = require('../webpack.config.js');
// Server 类
const Server = require('./Server.js');
// 创建 compiler
const compiler = Webpack(webpackConfig);
// devServer 配置
const options = webpackConfig.devServer;
// 创建 server 实例
const server = new Server(options, compiler);
// 执行 server 的start 方法
server.start();配置的 src/index.js 代码如下
javascript
import { a } from './demo';
let render = () => {
console.log(a);
};
render();
/**
* 热模块更新
*/
if (module.hot) {
module.hot.accept('./demo.js', () => {
render();
});
}src/demo.js 如下
javascript
const a = 23;
export { a };三、服务端初始化
3.1、服务端对象创建
定义的 Server 类如下
javascript
const WebsocketServer = require('./servers/WebsocketServer');
/**
* 创建缓存函数
*/
const memoize = (fn) => {
let cache = false;
let result;
return () => {
if (cache) {
return result;
}
result = fn();
cache = true;
fn = undefined;
return result;
};
};
const getExpress = memoize(() => require('express'));
class Server {
constructor(options = {}, compiler) {
this.compiler = compiler;
// 日志方法，用于打印日志
this.logger = this.compiler.getInfrastructureLogger('webpack-dev-server');
// devServer options
this.options = options;
// 存储进程的信号监听事件
this.listeners = []; // { name：信号，listener }
// 记录客户端连接的 http 的 socket 连接，这里不是指 websocket，而是提供类似 Tcp socket
this.sockets = [];
// 当前 hash 值
this.currentHash = undefined;
}
/**
* 初始化 options 并设置默认值
*/
normalizeOptions() {
//
}
// 发生消息给客户端
sendMessage() {
//
}
setupHooks() {
//
}
/**
* 创建 http 服务器，源码会区分 http2 和 http，这里只处理 http
*/
createServer() {
//
}
getClientEntry() {
//
}
getClientHotEntry() {
//
}
addAdditionalEntries() {
//
}
setupMiddlewares() {
//
}
async initialize() {
//
}
async start() {
//
}
createWebSocketServer() {
//
}
sendStats() {
//
}
async stop() {
//
}
stopCallback(callback = () => {}) {
this.stop()
.then(() => callback(), callback)
.catch(callback);
}
}
module.exports = Server;其中的 Server类中的 start 为入口执行函数。
3.2、执行start方法
javascript
async start() {
// 序列化 webpack.config.js 配置，主要没有设置的选项设置默认值
this.normalizeOptions();
// 初始化，主要创建服务器以及设置 webpack-dev-middleware 中间件
await this.initialize();
// 获取和设置 host 和 port，这里我使用直接赋值处理
this.options.host = '0.0.0.0';
this.options.port = '8090';
// 设置 listenOptions
const listenOptions = {
host: this.options.host,
port: this.options.port,
};
// 正式启动 serve
await new Promise((resolve) => {
this.server.listen(listenOptions, () => {
resolve();
});
});
// 创建服务端 WebSocket
this.createWebSocketServer();
}3.3、normalizeOptions方法
在 Server 类 constructor 中接收的 options 为 webpack.config.js 的 devServer 选项配置，更多详细的配置参考：https://webpack.js.org/configuration/dev-server/
目前只会简化源码中一部分设置，主要是为了剔除一些无关紧要的配置和易于理解。具体如下
javascript
/**
* 初始化 options 并设置默认值
*/
normalizeOptions() {
const { options } = this; // 获取到 devServer 配置
const compilerOptions = this.compiler.options; // webpack.config.js 整个配置选项
// allowedHosts 配置，如果未设置时，就默认设置 auto
if (typeof options.allowedHosts === 'undefined') {
options.allowedHosts = 'auto';
}
// bonjour 配置，如果未配置时，就默认设置 false
if (typeof options.bonjour === 'undefined') {
options.bonjour = false;
}
// client 配置
if (typeof options.client === 'undefined' || (typeof options.client === 'object' && options.client !== null)) {
if (!options.client) {
options.client = {};
}
if (typeof options.client.webSocketURL === 'undefined') {
options.client.webSocketURL = {};
}
if (typeof options.client.overlay === 'undefined') {
options.client.overlay = true;
}
if (typeof options.client.reconnect === 'undefined') {
options.client.reconnect = 10;
}
if (typeof options.client.logging === 'undefined') {
options.client.logging = compilerOptions.infrastructureLogging
? compilerOptions.infrastructureLogging.level
: 'info';
}
}
// compress 配置，在未设置时，默认设置为 true
if (typeof options.compress === 'undefined') {
options.compress = true;
}
// devMiddleware 配置，在未设置时，默认设置 {}
if (typeof options.devMiddleware === 'undefined') {
options.devMiddleware = {};
}
// hot 未设置时默认设置 true
options.hot = typeof options.hot === 'boolean' || options.hot === 'only' ? options.hot : true;
// server配置，主要设置启动服务器是 http 还是 https 等。
options.server = {
type: 'http',
options: {},
};
// liveReload 配置
options.liveReload = typeof options.liveReload !== 'undefined' ? options.liveReload : true;
// setupExitSignals 配置
if (typeof options.setupExitSignals === 'undefined') {
options.setupExitSignals = true;
}
// 服务端 webSocket 配置
options.webSocketServer = {
type: 'ws',
options: { path: '/ws' },
};
}整体返回的 options 数据结构为
javascript
{
allowedHosts: 'auto',
bonjour: false,
client: { webSocketURL:{}, overlay: true, reconnect: 10 },
compress: true,
devMiddleware: {},
hot: true,
server: { type: 'http', options: {} },
liveReload: true,
setupExitSignals: true,
webSocketServer: { type: 'ws', options: { path: '/ws' } }
}3.4、initialize方法
javascript
async initialize() {
// 添加compiler done hook监听事件回调
this.setupHooks();
// 使用 express 构建一个 app 服务器
this.app = getExpress()();
// 创建服务器
this.createServer();
// 主要为客户端注入 websocket 的连接和热更新文件
if (this.options.webSocketServer) {
const compiler = this.compiler;
this.addAdditionalEntries(compiler);
const webpack = compiler.webpack || require('webpack');
// 如果开启了 热更新 就添加 HotModuleReplacementPlugin
if (this.options.hot) {
const plugin = new webpack.HotModuleReplacementPlugin();
plugin.apply(compiler);
}
}
// 添加app webpack-dev-middleware中间件
this.setupMiddlewares();
// 根据 setupExitSignals 配置，通过 process.on 监听进程信号 SIGINT、SIGTERM 事件
// SIGINT：通常由 ctrl + c 触发
// SIGTERM：通常使用 kill 命令终止程序
if (this.options.setupExitSignals) {
const signals = ['SIGINT', 'SIGTERM'];
let needForceShutdown = false;
signals.forEach((signal) => {
const listener = () => {
if (needForceShutdown) {
process.exit();
}
this.logger.info('Gracefully shutting down. To force exit, press ^C again. Please wait...');
needForceShutdown = true;
// 在 ctrl + c 或 kill 命令终止程序时，会调用类中的 stopCallback
this.stopCallback(() => {
if (typeof this.compiler.close === 'function') {
this.compiler.close(() => {
process.exit();
});
} else {
process.exit();
}
});
};
// 这使用 listeners 进行存储，也是为了后续方便移除
this.listeners.push({ name: signal, listener });
process.on(signal, listener);
});
}
}3.4.1、setupHooks
javascript
// 添加compiler done hook监听事件回调
setupHooks() {
this.compiler.hooks.invalid.tap('webpack-dev-server', () => {
if (this.webSocketServer) {
this.sendMessage(this.webSocketServer.clients, 'invalid');
}
});
this.compiler.hooks.done.tap('webpack-dev-server', (stats) => {
console.log(stats.hash, '当前文件修改后的生成hash');
if (this.webSocketServer) {
this.sendStats(this.webSocketServer.clients, this.getStats(stats));
}
this.stats = stats;
});
}其中 sendStats 方法主要将生成 hash 发送给到客户端
javascript
sendStats(clients, stats, force) {
const shouldEmit =
!force &&
stats &&
(!stats.errors || stats.errors.length === 0) &&
(!stats.warnings || stats.warnings.length === 0) &&
this.currentHash === stats.hash;
if (shouldEmit) {
this.sendMessage(clients, 'still-ok');
return;
}
// 将当前 hash 进行存储
this.currentHash = stats.hash;
// 发送 hash 给到客户端
this.sendMessage(clients, 'hash', stats.hash);
if (stats.errors.length > 0 || stats.warnings.length > 0) {
const hasErrors = stats.errors.length > 0;
if (stats.warnings.length > 0) {
let params;
if (hasErrors) {
params = { preventReloading: true };
}
this.sendMessage(clients, 'warnings', stats.warnings, params);
}
if (stats.errors.length > 0) {
this.sendMessage(clients, 'errors', stats.errors);
}
} else {
this.sendMessage(clients, 'ok');
}
}3.4.2、createServer创建服务器
javascript
/**
* 创建 http 服务器，源码会区分 http2 和 http，这里只处理 http
*/
createServer() {
const { type, options } = this.options.server; // { type: 'http', options: {} }
const serverType = require(type);
this.server = serverType.createServer(options, this.app); // this.app 为 express()
/**
* 并且监听 connection 事件
*/
this.server.on('connection', (socket) => {
this.sockets.push(socket);
socket.once('close', () => {
this.sockets.splice(this.sockets.indexOf(socket), 1);
});
});
/**
* 监听 error 事件
*/
this.server.on('error', (error) => {
throw error;
});
}服务器创建完成之后会 Server 类会多出 server 和 app 属性。
3.4.3、修改entry配置添加注入文件
javascript
// 主要为客户端注入 websocket 的连接和热更新文件
if (this.options.webSocketServer) {
const compiler = this.compiler;
this.addAdditionalEntries(compiler);
const webpack = compiler.webpack || require('webpack');
// 如果开启了 热更新 就添加 HotModuleReplacementPlugin
if (this.options.hot) {
const plugin = new webpack.HotModuleReplacementPlugin();
plugin.apply(compiler);
}
}其中 addAdditionalEntries 配置如下
javascript
addAdditionalEntries(compiler) {
const additionalEntries = [];
// client { webSocketURL:{}, overlay: true, reconnect: 10 }
if (this.options.client) {
let webSocketURLStr = '';
// { type: 'ws', options: { path: '/ws' } }
if (this.options.webSocketServer) {
const webSocketServer = this.options.webSocketServer;
const searchParams = new URLSearchParams();
searchParams.set('protocol', 'ws:');
searchParams.set('hostname', '0.0.0.0');
searchParams.set('port', '8090');
searchParams.set('pathname', webSocketServer.options.path); // /ws
const client = this.options.client;
if (typeof client.logging !== 'undefined') {
searchParams.set('logging', client.logging);
}
if (typeof client.overlay !== 'undefined') {
const overlayString = typeof client.overlay === 'boolean' || String(client.overlay);
searchParams.set('overlay', overlayString);
}
if (typeof client.reconnect !== 'undefined') {
searchParams.set('reconnect', typeof client.reconnect === 'number' ? String(client.reconnect) : '10');
}
if (typeof this.options.hot !== 'undefined') {
searchParams.set('hot', String(this.options.hot));
}
if (typeof this.options.liveReload !== 'undefined') {
searchParams.set('live-reload', String(this.options.liveReload));
}
webSocketURLStr = searchParams.toString(); // 最终会拼接成 protocol=ws%3A&hostname=0.0.0.0&port=8090&pathname=%2Fws&logging=info&overlay=true&reconnect=10&hot=true&live-reload=true
}
additionalEntries.push(`${this.getClientEntry()}?${webSocketURLStr}`); // 添加需要注入的 js 文件
}
const clientHotEntry = this.getClientHotEntry(); // 注入的 热更新文件
if (clientHotEntry) {
additionalEntries.push(clientHotEntry);
}
const webpack = compiler.webpack || require('webpack');
// 调用 webpack 的 EntryPlugin 插件修改入口文件，想其中注入
for (const additionalEntry of additionalEntries) {
new webpack.EntryPlugin(compiler.context, additionalEntry, {
name: undefined,
}).apply(compiler);
}
}其中注入的两个文件为 ./client/index.js 和 ./hot/dev-server.js，文件作用后续会进行说明。
3.4.4、设置express服务器中间件
设置的中间件其实就是为 express 创建服务器设置中间件，详细可以件 express 的中间件设置
javascript
setupMiddlewares() {
let middlewares = [];
// 根据 options 的 compress 选项是否开启 compression 压缩
if (this.options.compress) {
const compression = require('compression');
middlewares.push({ name: 'compression', middleware: compression() });
}
// 添加 webpack-dev-middleware 中间件
middlewares.push({
name: 'webpack-dev-middleware',
middleware: this.middleware,
});
if (typeof this.options.setupMiddlewares === 'function') {
middlewares = this.options.setupMiddlewares(middlewares, this);
}
const lazyInitDevMiddleware = () => {
if (!this.middleware) {
const webpackDevMiddleware = require('webpack-dev-middleware');
this.middleware = webpackDevMiddleware(this.compiler, this.options.devMiddleware);
}
return this.middleware;
};
for (const i of middlewares) {
if (i.name === 'webpack-dev-middleware') {
const item = i;
if (typeof item.middleware === 'undefined') {
item.middleware = lazyInitDevMiddleware();
}
}
}
/**
* 给 this.app 创建的 express 服务器创建中间件
*/
for (const middleware of middlewares) {
if (typeof middleware === 'function') {
this.app.use(middleware);
} else if (typeof middleware.path !== 'undefined') {
this.app.use(middleware.path, middleware.middleware);
} else {
this.app.use(middleware.middleware);
}
}
}3.5、启动http服务器
在启动 http 服务器之前，this.server 属性都是在 createServer ，只需要调用 listen 方法。
javascript
// 这里对 webpack 的 devServer 配置进行写死，默认不取配置。
this.options.host = '0.0.0.0';
this.options.port = '8090';
const listenOptions = {
host: this.options.host,
port: this.options.port,
};
await new Promise((resolve) => {
this.server.listen(listenOptions, () => {
resolve();
});
});3.6、创建监听服务器的ws连接
javascript
createWebSocketServer() {
this.webSocketServer = new WebsocketServer(this);
// 当客户端的 ws 服务器初次连接时，会发送首次发送消息给客户端
this.webSocketServer.implementation.on('connection', (client, request) => {
const headers =
typeof request !== 'undefined'
? request.headers
: typeof client.headers !== 'undefined'
? client.headers
: undefined;
if (!headers) {
this.logger.warn('webSocketServer implementation must pass headers for the "connection" event');
}
// 发送 hot 消息
if (this.options.hot === true || this.options.hot === 'only') {
this.sendMessage([client], 'hot');
}
// 发送 liveReload 消息
if (this.options.liveReload) {
this.sendMessage([client], 'liveReload');
}
// 重新连接
if (this.options.client && this.options.client.reconnect) {
this.sendMessage([client], 'reconnect', this.options.client.reconnect);
}
if (this.options.client && this.options.client.overlay) {
const overlayConfig = this.options.client.overlay;
this.sendMessage(
[client],
'overlay',
typeof overlayConfig === 'object'
? {
...overlayConfig,
errors: overlayConfig.errors && encodeOverlaySettings(overlayConfig.errors),
warnings: overlayConfig.warnings && encodeOverlaySettings(overlayConfig.warnings),
runtimeErrors: overlayConfig.runtimeErrors && encodeOverlaySettings(overlayConfig.runtimeErrors),
}
: overlayConfig
);
}
if (!this.stats) {
return;
}
// 发送当前 stats 消息
this.sendStats([client], this.getStats(this.stats), true);
});
}其中 WebsocketServer 类如下
javascript
const WebSocket = require('ws');
module.exports = class WebsocketServer {
// 定义心跳时长
static heartbeatInterval = 1000;
constructor(server) {
this.server = server;
// 客户端连接存储
this.clients = [];
const options = {
...this.server.options.webSocketServer.options, // { path: '/ws' }
clientTracking: false,
};
const isNoServerMode = typeof options.port === 'undefined' && typeof options.server === 'undefined';
if (isNoServerMode) {
options.noServer = true;
}
// 创建 ws 服务器
this.implementation = new WebSocket.Server(options);
// Server类设置 http server 服务器
this.server.server.on('upgrade', (req, sock, head) => {
if (!this.implementation.shouldHandle(req)) {
return;
}
this.implementation.handleUpgrade(req, sock, head, (connection) => {
this.implementation.emit('connection', connection, req);
});
});
// 监听 ws 的 error 事件
this.implementation.on('error', (err) => {
this.server.logger.error(err.message);
});
// 监听 ws 的 connection 事件
this.implementation.on('connection', (client) => {
this.clients.push(client);
client.isAlive = true;
client.on('pong', () => {
client.isAlive = true;
});
client.on('close', () => {
this.clients.splice(this.clients.indexOf(client), 1);
});
client.on('error', (err) => {
this.server.logger.error(err.message);
});
});
// 创建定时器，向客户端定时发送心跳
const interval = setInterval(() => {
this.clients.forEach((client) => {
// 如果客户端不在活跃，执行 terminate 方法
if (client.isAlive === false) {
client.terminate();
return;
}
client.isAlive = false;
client.ping(() => {});
});
}, WebsocketServer.heartbeatInterval);
// 监听 close 事件，关闭时取消心跳机制
this.implementation.on('close', () => {
clearInterval(interval);
});
}
};3.7、如何发送消息给到客户端
发送消息给客户端主要全部封装到 sendMessage
javascript
// 遍历客户端，发送消息给客户端
sendMessage(clients, type, data, params) {
for (const client of clients) {
if (client.readyState === 1) {
client.send(JSON.stringify({ type, data, params }));
}
}
}3.8、如何优雅停止服务器
在 initialize 初始化时就已经监听了进程信号事件（SIGINT、SIGTERM），当触发该事件时会执行 stopCallback 方法，该方法内会执行 stop 方法，该方法是一个异步方法，等待异步方法执行完成之后会执行 stopCallback 的回调函数。
javascript
// stopCallback
// 需要等待 stop 的异步函数执行完，才会调用回调函数
stopCallback(callback = () => {}) {
this.stop()
.then(() => callback(), callback)
.catch(callback);
}javascript
async stop() {
if (this.webSocketServer) {
await new Promise((resolve) => {
// 关闭 服务器端 ws 服务
this.webSocketServer.implementation.close(() => {
this.webSocketServer = null;
resolve();
});
// 对于已经连接的客户端 ws 进行终止连接
for (const client of this.webSocketServer.clients) {
client.terminate();
}
this.webSocketServer.clients = [];
});
}
if (this.server) {
await new Promise((resolve) => {
// 对于 http 服务进行关闭
this.server.close(() => {
this.server = undefined;
resolve();
});
// 对于客户端连接 http sockets 进行销毁
for (const socket of this.sockets) {
socket.destroy();
}
this.sockets = [];
});
if (this.middleware) {
await new Promise((resolve, reject) => {
// 关闭中间件使用
this.middleware.close((error) => {
if (error) {
reject(error);
return;
}
resolve();
});
});
this.middleware = undefined;
}
}
// 移除 process.on 对 'SIGINT', 'SIGTERM' 对进程信号监听
for (const item of this.listeners) {
process.removeListener(item.name, item.listener);
}
}四、客户端初始化
在服务端初始化过程中会注入 devServer client entry 和 hot devServer entry，也就是 /client/index.js 和 /hot/dev-server.js 两个文件。在客户端最终的展示和执行如下
4.1、注入的client/index.js文件说明
javascript
/* global __resourceQuery, __webpack_hash__ */
// 发布订阅
import hotEmitter from '../hot/emitter.js';
// 热更新日志
import webpackHotLog from 'webpack/hot/log.js';
// 日志
import { log, setLogLevel } from './utils/log.js';
/**
* 客户端用于连接服务端 ws
*/
import socket from './socket.js';
import sendMessage from './utils/sendMessage.js';
console.log(__resourceQuery, ',____resourceQuery');
console.log(__webpack_hash__, '__webpack_hash__');
/**
* Status
*/
const status = {
isUnloading: false,
currentHash: __webpack_hash__,
};
/**
* 解析 resourceQuery 传过来的 url
*/
const parseURL = (resourceQuery) => {
let result = {};
if (typeof resourceQuery === 'string' && resourceQuery !== '') {
const searchParams = resourceQuery.slice(1).split('&');
for (let i = 0; i < searchParams.length; i++) {
const pair = searchParams[i].split('=');
result[pair[0]] = decodeURIComponent(pair[1]);
}
}
return result;
};
/**
* url 解析出来数据赋值给 parsedResourceQuery
*/
const parsedResourceQuery = parseURL(__resourceQuery);
/**
* 初始化定义的特性
*/
const enabledFeatures = {
'Hot Module Replacement': false,
'Live Reloading': false,
Progress: false,
Overlay: false,
};
/**
* 初始化定义的 options
*/
const options = {
hot: false,
liveReload: false,
progress: false,
overlay: false,
};
/**
* 如果解析 url 的 hot 为 true时，设置 options 和 enabledFeatures 为 true
*/
if (parsedResourceQuery.hot === 'true') {
options.hot = true;
enabledFeatures['Hot Module Replacement'] = true;
}
/**
* 设置 live-reload 为 true
*/
if (parsedResourceQuery['live-reload'] === 'true') {
options.liveReload = true;
enabledFeatures['Live Reloading'] = true;
}
/**
* 设置 overlay
*/
if (parsedResourceQuery.overlay) {
try {
options.overlay = JSON.parse(parsedResourceQuery.overlay); // "true"
} catch (err) {
log.error('Error parsing overlay options from resource query:', err);
}
enabledFeatures.Overlay = options.overlay !== false;
}
if (parsedResourceQuery.logging) {
options.logging = parsedResourceQuery.logging;
}
/**
* 设置 options 的 reconnect
*/
if (typeof parsedResourceQuery.reconnect !== 'undefined') {
options.reconnect = Number(parsedResourceQuery.reconnect); // 取出的是字符串
}
const setAllLogLevel = (level) => {
webpackHotLog.setLogLevel(level === 'verbose' || level === 'log' ? 'info' : level);
setLogLevel(level);
};
/**
* 根据 options 的 logging，设置日志
*/
if (options.logging) {
setAllLogLevel(options.logging);
}
const logEnabledFeatures = (features) => {
const listEnabledFeatures = Object.keys(features);
if (!features || listEnabledFeatures.length === 0) {
return;
}
let logString = 'Server started:';
for (let i = 0; i < listEnabledFeatures.length; i++) {
const key = listEnabledFeatures[i];
logString += ` ${key} ${features[key] ? 'enabled' : 'disabled'},`;
}
logString = logString.slice(0, -1).concat('.');
log.info(logString); // Server started: Hot Module Replacement enabled, Live Reloading enabled, Progress disabled, Overlay enabled.
};
/**
* 打印 listEnabledFeatures 的日志
*/
logEnabledFeatures(enabledFeatures);
/**
* 监听是否离开页面事件
*/
self.addEventListener('beforeunload', () => {
status.isUnloading = true;
});
const overlay = { send: () => {} };
/**
* 更新App应用
*/
const reloadApp = ({ hot, liveReload }, currentStatus) => {
if (currentStatus.isUnloading) {
return;
}
const { currentHash, previousHash } = currentStatus;
const isInitial = currentHash.indexOf(previousHash) >= 0;
if (isInitial) {
return;
}
function applyReload(rootWindow, intervalId) {
clearInterval(intervalId);
log.info('App updated. Reloading...');
rootWindow.location.reload();
}
const search = self.location.search.toLowerCase();
const allowToHot = search.indexOf('webpack-dev-server-hot=false') === -1;
const allowToLiveReload = search.indexOf('webpack-dev-server-live-reload=false') === -1;
console.log(hot && allowToHot, liveReload && allowToLiveReload);
/**
* 如果是热更新就触发热更新，不是热更新触发 window.location.reload();
*/
if (hot && allowToHot) {
log.info('App hot update...');
hotEmitter.emit('webpackHotUpdate', currentStatus.currentHash);
if (typeof self !== 'undefined' && self.window) {
// broadcast update to window
self.postMessage(`webpackHotUpdate${currentStatus.currentHash}`, '*');
}
} else if (liveReload && allowToLiveReload) {
let rootWindow = self;
const intervalId = self.setInterval(() => {
if (rootWindow.location.protocol !== 'about:') {
applyReload(rootWindow, intervalId);
} else {
rootWindow = rootWindow.parent;
if (rootWindow.parent === rootWindow) {
applyReload(rootWindow, intervalId);
}
}
});
}
};
/**
* 处理服务端发送过来的消息
*/
const onSocketMessage = {
// 处理服务端发送 hot 事件时 {"type":"hot"}
hot() {
if (parsedResourceQuery.hot === 'false') {
return;
}
options.hot = true;
},
// 处理服务端发送 hot 事件时 {"type":"liveReload"}
liveReload() {
if (parsedResourceQuery['live-reload'] === 'false') {
return;
}
options.liveReload = true;
},
invalid() {
log.info('App updated. Recompiling...');
if (options.overlay) {
overlay.send({ type: 'DISMISS' });
}
sendMessage('Invalid');
},
hash(hash) {
status.previousHash = status.currentHash;
status.currentHash = hash;
},
logging: setAllLogLevel,
overlay(value) {
if (typeof document === 'undefined') {
return;
}
options.overlay = value;
},
reconnect(value) {
if (parsedResourceQuery.reconnect === 'false') {
return;
}
options.reconnect = value;
},
'still-ok': function stillOk() {
log.info('Nothing changed.');
if (options.overlay) {
overlay.send({ type: 'DISMISS' });
}
sendMessage('StillOk');
},
ok() {
sendMessage('Ok');
if (options.overlay) {
overlay.send({ type: 'DISMISS' });
}
reloadApp(options, status);
},
warnings(warnings, params) {
log.warn('Warnings while compiling.');
sendMessage('Warnings', warnings);
},
errors(errors) {
log.error('Errors while compiling. Reload prevented.');
sendMessage('Errors', errors);
},
error(error) {
log.error(error);
},
close() {
log.info('Disconnected!');
if (options.overlay) {
overlay.send({ type: 'DISMISS' });
}
sendMessage('Close');
},
};
/**
* 根据 url组成的对象，组装成一个字符串url
*/
const formatURL = (objURL) => {
let protocol = objURL.protocol || '';
if (protocol && protocol.slice(-1) !== ':') {
protocol += ':';
}
let auth = objURL.auth || '';
if (auth) {
auth = encodeURIComponent(auth);
auth = auth.replace(/%3A/i, ':');
auth += '@';
}
let host = '';
if (objURL.hostname) {
host = auth + (objURL.hostname.indexOf(':') === -1 ? objURL.hostname : `[${objURL.hostname}]`);
if (objURL.port) {
host += `:${objURL.port}`;
}
}
let pathname = objURL.pathname || '';
if (objURL.slashes) {
host = `//${host || ''}`;
if (pathname && pathname.charAt(0) !== '/') {
pathname = `/${pathname}`;
}
} else if (!host) {
host = '';
}
let search = objURL.search || '';
if (search && search.charAt(0) !== '?') {
search = `?${search}`;
}
let hash = objURL.hash || '';
if (hash && hash.charAt(0) !== '#') {
hash = `#${hash}`;
}
pathname = pathname.replace(/[?#]/g, (match) => encodeURIComponent(match));
search = search.replace('#', '%23');
return `${protocol}${host}${pathname}${search}${hash}`;
};
/**
* 创建 webSocket 连接的url
*/
const createSocketURL = (parsedURL) => {
let { hostname } = parsedURL;
const isInAddrAny = hostname === '0.0.0.0' || hostname === '::' || hostname === '[::]';
if (isInAddrAny && self.location.hostname && self.location.protocol.indexOf('http') === 0) {
hostname = self.location.hostname;
}
let socketURLProtocol = parsedURL.protocol || self.location.protocol;
if (socketURLProtocol === 'auto:' || (hostname && isInAddrAny && self.location.protocol === 'https:')) {
socketURLProtocol = self.location.protocol;
}
socketURLProtocol = socketURLProtocol.replace(/^(?:http|.+-extension|file)/i, 'ws');
let socketURLAuth = '';
if (parsedURL.username) {
socketURLAuth = parsedURL.username;
if (parsedURL.password) {
socketURLAuth = socketURLAuth.concat(':', parsedURL.password);
}
}
const socketURLHostname = (hostname || self.location.hostname || 'localhost').replace(/^\[(.*)\]$/, '$1');
let socketURLPort = parsedURL.port;
if (!socketURLPort || socketURLPort === '0') {
socketURLPort = self.location.port;
}
let socketURLPathname = '/ws';
if (parsedURL.pathname && !parsedURL.fromCurrentScript) {
socketURLPathname = parsedURL.pathname;
}
return formatURL({
protocol: socketURLProtocol,
auth: socketURLAuth,
hostname: socketURLHostname,
port: socketURLPort,
pathname: socketURLPathname,
slashes: true,
});
};
/**
* ws 的 url
*/
const socketURL = createSocketURL(parsedResourceQuery);
socket(socketURL, onSocketMessage, options.reconnect);其中的 socket.js 文件内容如下
javascript
import WebSocketClient from './WebSocketClient';
let retries = 0;
let maxRetries = 10;
let client = null;
let timeout;
function socket(url, handlers, reconnect) {
/**
* 创建客户端 WebSocket
*/
client = new WebSocketClient(url);
client.onOpen(() => {
retries = 0;
if (timeout) {
clearTimeout(timeout);
}
if (typeof reconnect !== 'undefined') {
maxRetries = reconnect;
}
});
client.onClose(() => {
if (retries === 0) {
handlers.close();
}
// Try to reconnect.
client = null;
if (retries < maxRetries) {
const retryInMs = 1000 * Math.pow(2, retries) + Math.random() * 100;
retries += 1;
console.log('Trying to reconnect...');
timeout = setTimeout(() => {
socket(url, handlers, reconnect);
}, retryInMs);
}
});
/**
* 客户端监听客户端消息，并且处理对应事件。例如：{"type":"hash","data":"3f3609e6ca874b8c4015"}，type 为 handlers，data为参数
*/
client.onMessage((data) => {
const message = JSON.parse(data);
if (handlers[message.type]) {
handlers[message.type](message.data, message.params);
}
});
}
export default socket;WebSocketClient.js 内容如下
javascript
export default class WebSocketClient {
constructor(url) {
this.client = new WebSocket(url);
this.client.onerror = (error) => {
console.error(error);
};
}
onOpen(fn) {
this.client.onopen = fn;
}
onClose(fn) {
this.client.onclose = fn;
}
onMessage(fn) {
this.client.onmessage = (err) => {
fn(err.data);
};
}
}4.2、__resourceQuery、__webpack_hash__全局变量

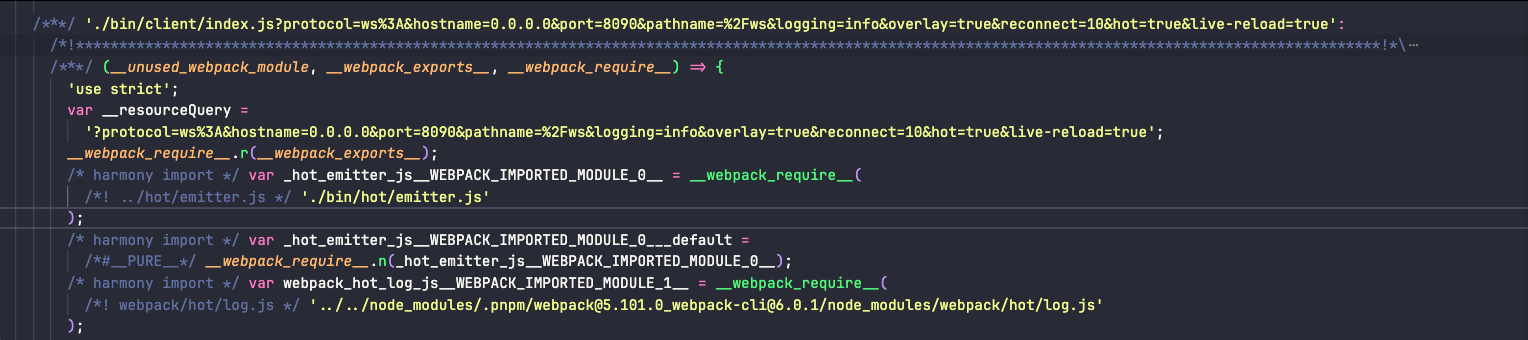

webpack 在构建之后的会向全局注入 __resourceQuery、__webpack_hash__ 变量，变量含义如下：
resourceQuery：注入文件时携带的url参数
webpack_hash：为当前的文件hash
javascript
protocol=ws%3A&hostname=0.0.0.0&port=8090&pathname=%2Fws&logging=info&overlay=true&reconnect=10&hot=true&live-reload=true ,____resourceQuery // 传递 ip 地址和端口等参数信息
7946a3b2449f259febab __webpack_hash__ // 传递过来的hash存储4.2、客户端接收服务端hash和ok事件
4.2.1、hash事件处理
主要是在 onSocketMessage 的 hash 方法
javascript
hash(hash) {
// 将当前存储的 hash 设置为 历史前hash
status.previousHash = status.currentHash;
// 并重新赋值重新 hash 给 currentHash
status.currentHash = hash;
},4.2.2、ok事件
在触发热更新时，ok 的事件在 hash 事件之后发送执行
javascript
ok() {
sendMessage('Ok');
if (options.overlay) {
overlay.send({ type: 'DISMISS' });
}
reloadApp(options, status);
},其中最为核心的是 reloadApp 方法，其内容如下
javascript
/**
* 触发热更新，并更新应用
*/
const reloadApp = ({ hot, liveReload }, currentStatus) => {
/**
* 当离开当前页面时，isUnloading 就是设置为 true，不做后续操作
*/
if (currentStatus.isUnloading) {
return;
}
// 取出当前和上一次 hash
const { currentHash, previousHash } = currentStatus;
// 判断 当前hash 是否和上一次 hash 是否一致，一致就 return 处理
const isInitial = currentHash.indexOf(previousHash) >= 0;
if (isInitial) {
return;
}
function applyReload(rootWindow, intervalId) {
clearInterval(intervalId);
log.info('App updated. Reloading...');
rootWindow.location.reload();
}
const search = self.location.search.toLowerCase();
const allowToHot = search.indexOf('webpack-dev-server-hot=false') === -1;
const allowToLiveReload = search.indexOf('webpack-dev-server-live-reload=false') === -1;
console.log(allowToHot, allowToLiveReload, liveReload);
/**
* 如果是热更新就触发热更新，不是热更新触发 window.location.reload();
*/
if (hot && allowToHot) {
log.info('App hot update...');
// 发送 hotEmitter 的 webpackHotUpdate 事件
hotEmitter.emit('webpackHotUpdate', currentStatus.currentHash);
if (typeof self !== 'undefined' && self.window) {
// broadcast update to window
self.postMessage(`webpackHotUpdate${currentStatus.currentHash}`, '*');
}
} else if (liveReload && allowToLiveReload) {
// 如果 hot 为 false 时，就触发浏览器刷新事件，主要是调用 window.location.reload()
let rootWindow = self;
const intervalId = self.setInterval(() => {
if (rootWindow.location.protocol !== 'about:') {
applyReload(rootWindow, intervalId);
} else {
rootWindow = rootWindow.parent;
if (rootWindow.parent === rootWindow) {
applyReload(rootWindow, intervalId);
}
}
});
}

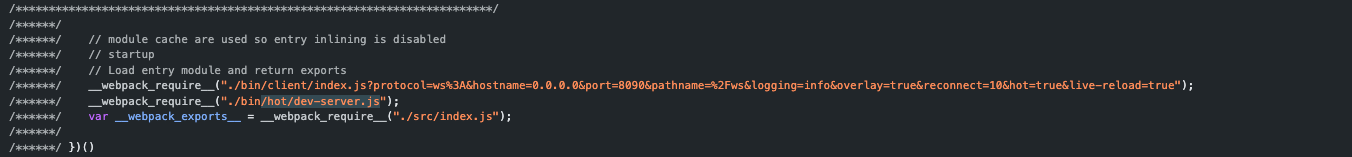

};4.3、注入的hot/dev-server.js文件
hot/dev-server.js 的内容如下
javascript
/* globals __webpack_hash__ */
if (module.hot) {
var lastHash;
// 判断当前获取 lastHash 是否与 __webpack_hash__ 如果一致就返回 true，不一致就返回 false
var upToDate = function upToDate() {
return lastHash.indexOf(__webpack_hash__) >= 0;
};
var check = function check() {
module.hot
.check(true)
.then(function (updatedModules) {
if (!updatedModules) {
console.log(
'warning',
'[HMR] Cannot find update. ' +
(typeof window !== 'undefined' ? 'Need to do a full reload!' : 'Please reload manually!')
);
console.log('warning', '[HMR] (Probably because of restarting the webpack-dev-server)');
if (typeof window !== 'undefined') {
window.location.reload();
}
return;
}
if (!upToDate()) {
check();
}
if (upToDate()) {
console.log('[HMR] App is up to date.');
}
})
.catch(function (err) {
var status = module.hot.status();
if (['abort', 'fail'].indexOf(status) >= 0) {
console.log(
'warning',
'[HMR] Cannot apply update. ' +
(typeof window !== 'undefined' ? 'Need to do a full reload!' : 'Please reload manually!')
);
console.log('warning', '[HMR] ' + err);
if (typeof window !== 'undefined') {
window.location.reload();
}
} else {
console.log('warning', '[HMR] Update failed: ' + err);
}
});
};
var hotEmitter = require('./emitter');
/**
* 监听 webpackHotUpdate 事件，主要是由 client/index.js 中触发
*/
hotEmitter.on('webpackHotUpdate', function (currentHash) {
lastHash = currentHash; // 获取到当前接收的 hash
if (!upToDate() && module.hot.status() === 'idle') {
console.log('[HMR] Checking for updates on the server...');
// 调用 check() 方法
check();
}
});
console.log('[HMR] Checking for updates on the server...', '🚀');
} else {
throw new Error('[HMR] Hot Module Replacement is disabled.');
}4.4、module.hot是如何被注入的
首先需要的就是了解 import 的模块是被编译了什么，编译后的模块是如何被加载的。
核心就是在 webpack 编译后的 __webpack_require__ 函数在加载模块之前添加了 __webpack_require__.i 拦截器。在加载模块之前需要先执行拦截器中的方法，目的在与获取当前模块的父级模块和子级模块之间的关系。这是通过 HotModuleReplacementPlugin 插件进行对 __webpack_require__ 进行拦截器拓展。
webpack 的 __webpack_require__ 函数如下
javascript
function __webpack_require__(moduleId) {
// 检查是否能够在缓存中找到
var cachedModule = __webpack_module_cache__[moduleId];
if (cachedModule !== undefined) {
return cachedModule.exports;
}
// 缓存未命中时，创建新的缓存
var module = (__webpack_module_cache__[moduleId] = {
// no module.id needed
// no module.loaded needed
exports: {},
});
// 用于执行拦截器的传递的 options
var execOptions = {
id: moduleId, // 模块id
module: module, // 初始化模块
factory: __webpack_modules__[moduleId], // 取出来的模块函数
require: __webpack_require__,
};

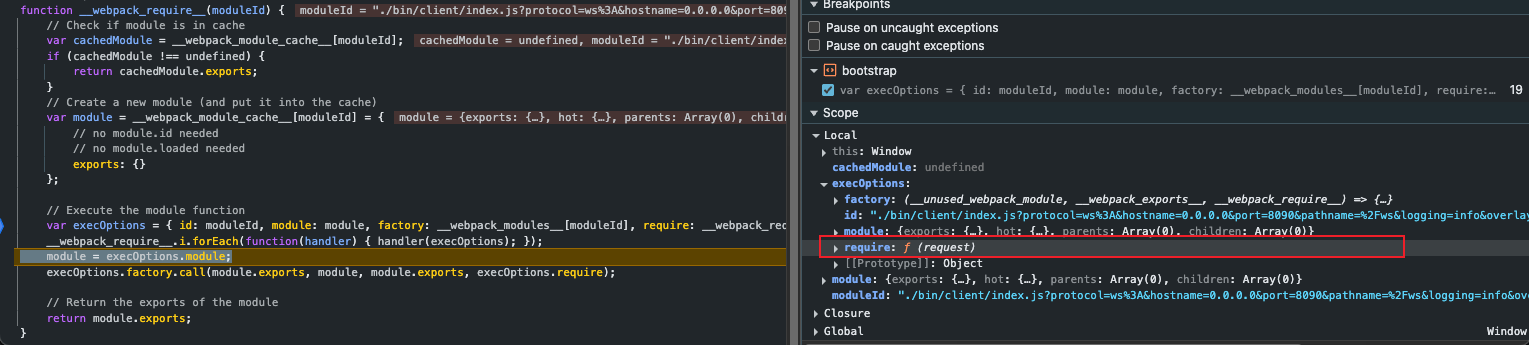

// 执行拦截器
__webpack_require__.i.forEach(function (handler) {
handler(execOptions);
});
module = execOptions.module;
// 改变 factory 函数指向，并调用函数
execOptions.factory.call(module.exports, module, module.exports, execOptions.require);
// Return the exports of the module
return module.exports;

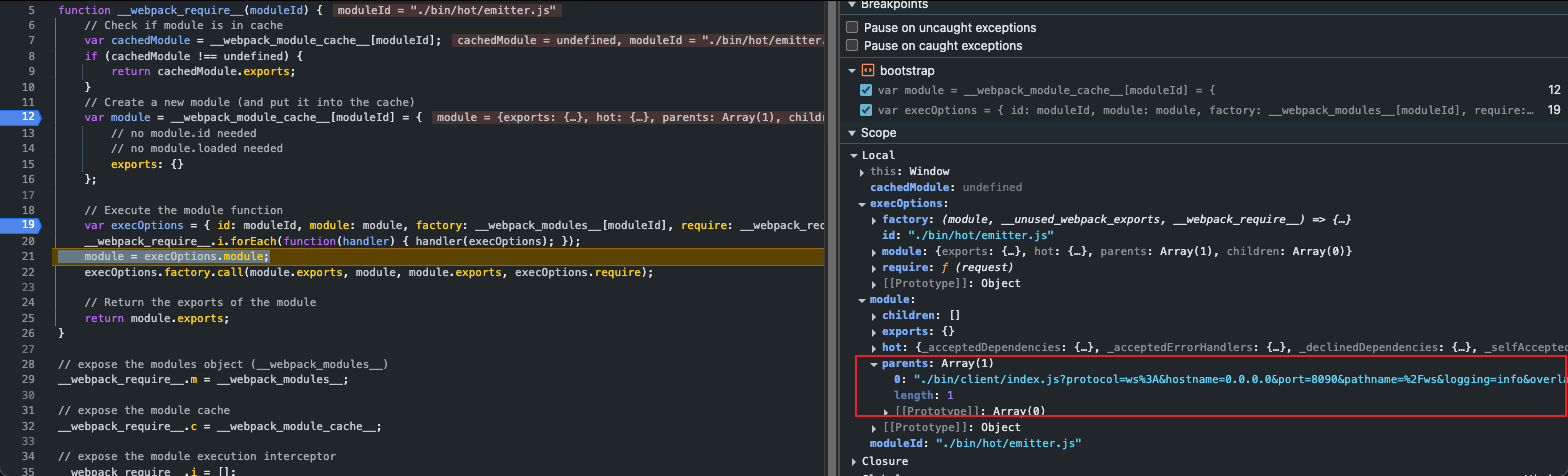

}其中 __webpack_require__.i 是通过 HotModuleReplacementPlugin 插件注入实现。
javascript
/* webpack/runtime/hot module replacement */
(() => {
var currentModuleData = {};
// 缓存的模块 __webpack_module_cache__
var installedModules = __webpack_require__.c;
// module and require creation
var currentChildModule;
var currentParents = [];
// 当前热更新状态
var registeredStatusHandlers = [];
var currentStatus = 'idle';
// while downloading
var blockingPromises = 0;
var blockingPromisesWaiting = [];
// 更新依赖模块的处理方法
var currentUpdateApplyHandlers;
var queuedInvalidatedModules;
__webpack_require__.hmrD = currentModuleData;
// 为加载模块之前添加拦截器，
__webpack_require__.i.push(function (options) {
var module = options.module;
// 包装require方法，注入建立依赖模块父子关联关系代码逻辑
var require = createRequire(options.require, options.id);
// 创建 module.hot 注入
module.hot = createModuleHotObject(options.id, module);
module.parents = currentParents;
module.children = [];
currentParents = [];
options.require = require;
});
__webpack_require__.hmrC = {};
__webpack_require__.hmrI = {};

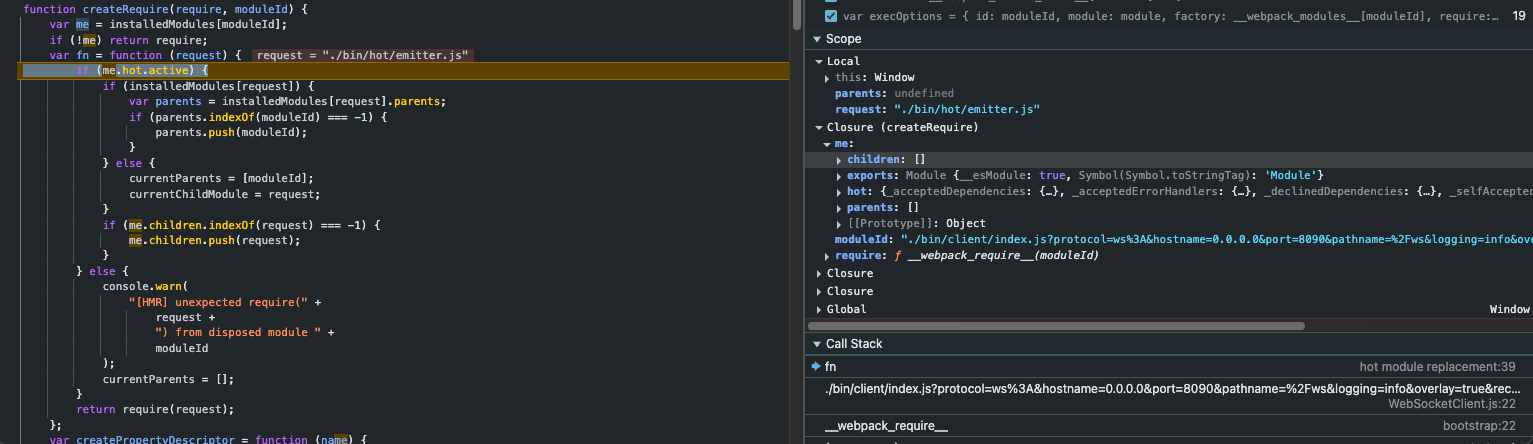

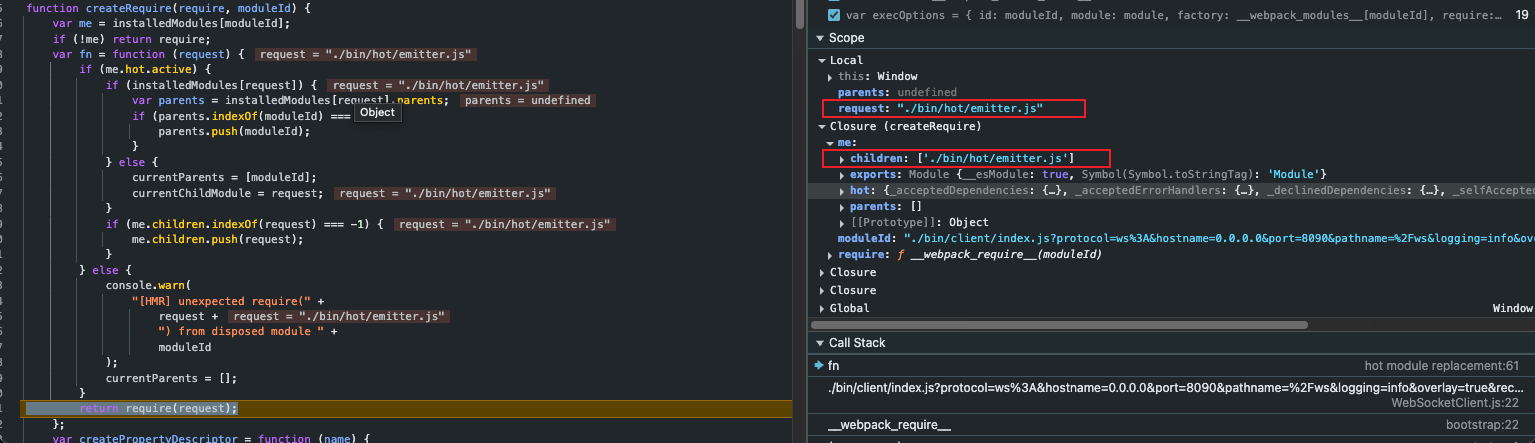

function createRequire(require, moduleId) {
var me = installedModules[moduleId]; // 在执行该方法前 installedModules 都会存在 { exports: {} }
if (!me) return require;
var fn = function (request) {
// 这里取到的 me 其实就是父模块，采用的是一个闭包形式实现
if (me.hot.active) {
// 建立依赖模块父子关联关系
if (installedModules[request]) {
var parents = installedModules[request].parents;
if (parents.indexOf(moduleId) === -1) {
parents.push(moduleId);
}
} else {
currentParents = [moduleId];
currentChildModule = request;
}
if (me.children.indexOf(request) === -1) {
me.children.push(request);
}
} else {
console.warn('[HMR] unexpected require(' + request + ') from disposed module ' + moduleId);
currentParents = [];
}
// 返回 require(request) 结果，require 其实就是 __webpack_require__
return require(request);
};
var createPropertyDescriptor = function (name) {
return {
configurable: true, // 属性是否可以被删除
enumerable: true, // 属性是否可枚举
get: function () {
return require[name];
},
set: function (value) {
require[name] = value;
},
};
};
// 将 require 的属性相关赋值给 fn （排除 e 属性）并设置 set 和 get
for (var name in require) {
if (Object.prototype.hasOwnProperty.call(require, name) && name !== 'e') {
Object.defineProperty(fn, name, createPropertyDescriptor(name));
}
}
// fn 赋值 e 属性
fn.e = function (chunkId, fetchPriority) {
return trackBlockingPromise(require.e(chunkId, fetchPriority));
};
// 返回 fn
return fn;
}
function createModuleHotObject(moduleId, me) {
var _main = currentChildModule !== moduleId;
var hot = {
// 记录可以热更新的子依赖模块
_acceptedDependencies: {},
_acceptedErrorHandlers: {},
_declinedDependencies: {},
_selfAccepted: false,
_selfDeclined: false,
_selfInvalidated: false,
_disposeHandlers: [],
_main: _main,
_requireSelf: function () {
currentParents = me.parents.slice();
currentChildModule = _main ? undefined : moduleId;
__webpack_require__(moduleId);
},
// Module API
active: true,
// 添加监听依赖模块热更新回调
accept: function (dep, callback, errorHandler) {
if (dep === undefined) hot._selfAccepted = true;
else if (typeof dep === 'function') hot._selfAccepted = dep;
else if (typeof dep === 'object' && dep !== null) {
for (var i = 0; i < dep.length; i++) {
hot._acceptedDependencies[dep[i]] = callback || function () {};
hot._acceptedErrorHandlers[dep[i]] = errorHandler;
}
} else {
hot._acceptedDependencies[dep] = callback || function () {};
hot._acceptedErrorHandlers[dep] = errorHandler;
}
},
decline: function (dep) {
if (dep === undefined) hot._selfDeclined = true;
else if (typeof dep === 'object' && dep !== null)
for (var i = 0; i < dep.length; i++) hot._declinedDependencies[dep[i]] = true;
else hot._declinedDependencies[dep] = true;
},
dispose: function (callback) {
hot._disposeHandlers.push(callback);
},
addDisposeHandler: function (callback) {
hot._disposeHandlers.push(callback);
},
removeDisposeHandler: function (callback) {
var idx = hot._disposeHandlers.indexOf(callback);
if (idx >= 0) hot._disposeHandlers.splice(idx, 1);
},
invalidate: function () {
this._selfInvalidated = true;
switch (currentStatus) {
case 'idle':
currentUpdateApplyHandlers = [];
Object.keys(__webpack_require__.hmrI).forEach(function (key) {
__webpack_require__.hmrI[key](moduleId, currentUpdateApplyHandlers);
});
setStatus('ready');
break;
case 'ready':
Object.keys(__webpack_require__.hmrI).forEach(function (key) {
__webpack_require__.hmrI[key](moduleId, currentUpdateApplyHandlers);
});
break;
case 'prepare':
case 'check':
case 'dispose':
case 'apply':
(queuedInvalidatedModules = queuedInvalidatedModules || []).push(moduleId);
break;
default: // ignore requests in error states
break;
}
},
// Management API
check: hotCheck,
apply: hotApply,
status: function (l) {
if (!l) return currentStatus;
registeredStatusHandlers.push(l);
},
addStatusHandler: function (l) {
registeredStatusHandlers.push(l);
},
removeStatusHandler: function (l) {
var idx = registeredStatusHandlers.indexOf(l);
if (idx >= 0) registeredStatusHandlers.splice(idx, 1);
},
// inherit from previous dispose call
data: currentModuleData[moduleId],
};
currentChildModule = undefined;
return hot;
}
function setStatus(newStatus) {
currentStatus = newStatus;
var results = [];
for (var i = 0; i < registeredStatusHandlers.length; i++)
results[i] = registeredStatusHandlers[i].call(null, newStatus);
return Promise.all(results).then(function () {});
}
function unblock() {
if (--blockingPromises === 0) {
setStatus('ready').then(function () {
if (blockingPromises === 0) {
var list = blockingPromisesWaiting;
blockingPromisesWaiting = [];
for (var i = 0; i < list.length; i++) {
list[i]();
}
}
});
}
}
function trackBlockingPromise(promise) {
switch (currentStatus) {
case 'ready':
setStatus('prepare');
/* fallthrough */
case 'prepare':
blockingPromises++;
promise.then(unblock, unblock);
return promise;
default:
return promise;
}
}
function waitForBlockingPromises(fn) {
if (blockingPromises === 0) return fn();
return new Promise(function (resolve) {
blockingPromisesWaiting.push(function () {
resolve(fn());
});
});
}
function hotCheck(applyOnUpdate) {
if (currentStatus !== 'idle') {
throw new Error('check() is only allowed in idle status');
}
return setStatus('check')
.then(__webpack_require__.hmrM)
.then(function (update) {
if (!update) {
return setStatus(applyInvalidatedModules() ? 'ready' : 'idle').then(function () {
return null;
});
}
return setStatus('prepare').then(function () {
var updatedModules = [];
currentUpdateApplyHandlers = [];
return Promise.all(
Object.keys(__webpack_require__.hmrC).reduce(function (promises, key) {
__webpack_require__.hmrC[key](
update.c,
update.r,
update.m,
promises,
currentUpdateApplyHandlers,
updatedModules
);
return promises;
}, [])
).then(function () {
return waitForBlockingPromises(function () {
if (applyOnUpdate) {
return internalApply(applyOnUpdate);
}
return setStatus('ready').then(function () {
return updatedModules;
});
});
});
});
});
}
function hotApply(options) {
if (currentStatus !== 'ready') {
return Promise.resolve().then(function () {
throw new Error('apply() is only allowed in ready status (state: ' + currentStatus + ')');
});
}
return internalApply(options);
}
function internalApply(options) {
options = options || {};
applyInvalidatedModules();
var results = currentUpdateApplyHandlers.map(function (handler) {
return handler(options);
});
currentUpdateApplyHandlers = undefined;
var errors = results
.map(function (r) {
return r.error;
})
.filter(Boolean);
if (errors.length > 0) {
return setStatus('abort').then(function () {
throw errors[0];
});
}
// Now in "dispose" phase
var disposePromise = setStatus('dispose');
results.forEach(function (result) {
if (result.dispose) result.dispose();
});
// Now in "apply" phase
var applyPromise = setStatus('apply');
var error;
var reportError = function (err) {
if (!error) error = err;
};
var outdatedModules = [];
var onAccepted = function () {
return Promise.all([disposePromise, applyPromise]).then(function () {
// handle errors in accept handlers and self accepted module load
if (error) {
return setStatus('fail').then(function () {
throw error;
});
}
if (queuedInvalidatedModules) {
return internalApply(options).then(function (list) {
outdatedModules.forEach(function (moduleId) {
if (list.indexOf(moduleId) < 0) list.push(moduleId);
});
return list;
});
}
return setStatus('idle').then(function () {
return outdatedModules;
});
});
};
return Promise.all(
results
.filter(function (result) {
return result.apply;
})
.map(function (result) {
return result.apply(reportError);
})
)
.then(function (applyResults) {
applyResults.forEach(function (modules) {
if (modules) {
for (var i = 0; i < modules.length; i++) {
outdatedModules.push(modules[i]);
}
}
});
})
.then(onAccepted);
}
function applyInvalidatedModules() {
if (queuedInvalidatedModules) {
if (!currentUpdateApplyHandlers) currentUpdateApplyHandlers = [];
Object.keys(__webpack_require__.hmrI).forEach(function (key) {
queuedInvalidatedModules.forEach(function (moduleId) {
__webpack_require__.hmrI[key](moduleId, currentUpdateApplyHandlers);
});
});
queuedInvalidatedModules = undefined;
return true;
}
}
})();在 webpack 编译之后通过 require 加载其他模块之前，会先执行 __webpack_require__.i 定义的函数。其中这里最重要的是 createRequire 和 createModuleHotObject，一个对 __webpack_require__ 进行了修改，一个对 module 对象添加 hot 属性，其中就最重要的就是 check 函数。因为前面调用的就是 module.hot.check 实际就是 hotCheck 函数。
4.5、如何确定父子模块之间关系
以注入的 client/index.js 为例
javascript
__webpack_require__(
'./bin/client/index.js?protocol=ws%3A&hostname=0.0.0.0&port=8090&pathname=%2Fws&logging=info&overlay=true&reconnect=10&hot=true&live-reload=true'
);
__webpack_require__('./bin/hot/dev-server.js');
var __webpack_exports__ = __webpack_require__('./src/index.js');在执行完 __webpack_require__ 时，会执行到 __webpack_require__.i
javascript
// Execute the module function
var execOptions = {
id: moduleId, // 模块id
module: module, // 初始化模块
factory: __webpack_modules__[moduleId], // 取出来的模块函数
require: __webpack_require__,
};
// 执行拦截器
__webpack_require__.i.forEach(function (handler) {
handler(execOptions);
});其中 __webpack_require__.i 添加的函数如下
javascript
// 为加载模块之前添加拦截器，
__webpack_require__.i.push(function (options) {
var module = options.module;
var require = createRequire(options.require, options.id);
// 创建 module.hot 注入
module.hot = createModuleHotObject(options.id, module);
// 将存储父模块赋值当前模块，如果当前模块为根模块就默认为 []
module.parents = currentParents;
module.children = [];
// 重新将 currentParents 重置为 []
currentParents = [];
options.require = require;
});其中 createRequire 分析如下
javascript
function createRequire(require, moduleId) {
// 这里 require 实际就是 __webpack_require__ ，moduleId 实际就是 父模块的id
var me = installedModules[moduleId];
if (!me) return require;
var fn = function (request) {
// 这里取到的 me 其实就是父模块，采用的是一个闭包形式实现
if (me.hot.active) {
// 判断当前模块是否加载过
if (installedModules[request]) {
var parents = installedModules[request].parents;
if (parents.indexOf(moduleId) === -1) {
parents.push(moduleId);
}
} else {
currentParents = [moduleId]; // 存储当前父模块信息
currentChildModule = request; // 设置当前子模块 id
} // 给 me 模块（实际就是父模块）加载子模块，也就是添加 request
if (me.children.indexOf(request) === -1) {
me.children.push(request);
}
} else {
console.warn('[HMR] unexpected require(' + request + ') from disposed module ' + moduleId);
currentParents = [];
}
// 返回 require(request) 结果，require 其实就是 __webpack_require__
return require(request);
};在执行完拦截器函数之后，初始化当前模块 parents 和 children 为 [] 。
同时 require 函数形成了闭包
然后就是执行模块的 factory.call 进行加载模块
javascript
// 改变 factory 函数指向，并调用函数
execOptions.factory.call(module.exports, module, module.exports, execOptions.require);在执行到 client/index.js 内部时，可以查看到以下代码如下
会执行 __webpack_require__.r 函数，但是实际执行到的是 f(request){} 函数的 r 函数，目的就是将 module.exports 设置 __esModule 属性为 true。
然后在执行 __webpack_require__ 对 ./bin/hot/emitter.js 进行加载也就是调用 createRequire 返回的函数。
当执行完之后 me 模块也就是父模块的 children 属性多出当前模块id
执行上述过程还并未对 hot/emitter.js 进行实际模块加载，实际模块的加载是返回的 require(request) 也就是重新执行 __webpack_require__
javascript
// 返回 require(request) 结果，require 其实就是 __webpack_require__
return require(request);并且 currentParents 会作为一个全局进行存储起来，在后续执行 require(request) 时也就会再次执行拦截器函数时给模块赋值父模块并且重置为 0
javascript
// 为加载模块之前添加拦截器，
__webpack_require__.i.push(function (options) {
var module = options.module;
var require = createRequire(options.require, options.id);
// 创建 module.hot 注入
module.hot = createModuleHotObject(options.id, module);
// 将存储父模块赋值当前模块，如果当前模块为根模块就默认为 []
module.parents = currentParents;
module.children = [];
// 重新将 currentParents 重置为 []
currentParents = [];
options.require = require;
});
webpack 就是由此反复闭包处理加载模块，从而确定了模块之间的关系。
八、代码热更新
8.1、module.hot.check调用
在 module.hot.check() 的调用实际就是调用 hotCheck()
javascript
function hotCheck(applyOnUpdate) {
if (currentStatus !== 'idle') {
throw new Error('check() is only allowed in idle status');
}
return setStatus('check')
// 获取chunk更新manifest
.then(__webpack_require__.hmrM) // __webpack_require__.hmrM 获取那些模块变更了信息
.then(function (update) {
// update 的数据结构为 {"c":["main"],"r":[],"m":[]}
if (!update) {
return setStatus(applyInvalidatedModules() ? 'ready' : 'idle').then(function () {
return null;
});
}
return setStatus('prepare').then(function () {
var updatedModules = [];
currentUpdateApplyHandlers = [];
return Promise.all(
Object.keys(__webpack_require__.hmrC).reduce(function (promises, key) {
// 这里实际调用的是 __webpack_require__.hmrC.jsonp
__webpack_require__.hmrC[key](
update.c,
update.r,
update.m,
promises,
currentUpdateApplyHandlers,
updatedModules
);
return promises; // promises 实际就是对 js 的 chunk 文件进行拉取
}, [])
).then(function () {
// 等待 js 的 chunk 执行完成之后执行
return waitForBlockingPromises(function () {
if (applyOnUpdate) {
// 执行依赖模块更新逻辑
return internalApply(applyOnUpdate);
}
return setStatus('ready').then(function () {
return updatedModules;
});
});
});
});
});
}8.2、获取文件变化的json数据
在执行完 setStatus('check') 会执行 __webpack_require__.hmrM 函数，实际就是通过 fetch 函数拉取对应 json 数据
javascript
__webpack_require__.hmrM = () => {
if (typeof fetch === 'undefined') throw new Error('No browser support: need fetch API');
return fetch(__webpack_require__.p + __webpack_require__.hmrF()).then((response) => {
if (response.status === 404) return; // no update available
if (!response.ok) throw new Error('Failed to fetch update manifest ' + response.statusText);
return response.json();
});
};其中的 __webpack_require__.hmrF() 就是获取对应文件信息进行拉取
javascript
(() => {
__webpack_require__.hmrF = () => 'main.' + __webpack_require__.h() + '.hot-update.json';
})();其中 __webpack_require__.h() 就是获取 hash 。
然后获取到 json 数据进行 response.json()，返回的数据格式如下
javascript
{"c":["main"],"r":[],"m":[]}8.3、通过jsonp获取变化的模块js
在获取的 json 数据时，然后陆续执行后续返回的 setStatus("prepare") 函数，执行完之后就执行后续的 then 方法
javascript
return setStatus("prepare").then(function () {
var updatedModules = [];
currentUpdateApplyHandlers = [];
return Promise.all(
Object.keys(__webpack_require__.hmrC).reduce(function (
promises,
key
) {
__webpack_require__.hmrC[key](
update.c,
update.r,
update.m,
promises,
currentUpdateApplyHandlers,
updatedModules
);
return promises;
}, [])
).then(function () {
return waitForBlockingPromises(function () {
if (applyOnUpdate) {
return internalApply(applyOnUpdate);
}
return setStatus("ready").then(function () {
return updatedModules;
});
});
});
});然后在执行 Promise.all 函数，最终对 Object.keys(__webpack_require__.hmrC) 的操作实际就是对 __webpack_require__.hmrC.jsonp 的 jsonp 属性处理，在执行完执行实际就是 Promise.all([Promise]) ，内部的 Promise 就是对更改的模块js进行的一个获取。
javascript
Promise.all(
Object.keys(__webpack_require__.hmrC).reduce(function (
promises,
key
) {
__webpack_require__.hmrC[key](
update.c,
update.r,
update.m,
promises,
currentUpdateApplyHandlers,
updatedModules
);
return promises;
}, [])
)实际的是执行 __webpack_require__.hmrC.jsonp 函数，其中最重要的就是 promises.push(loadUpdateChunk(chunkId, updatedModulesList))
javascript
__webpack_require__.hmrC.jsonp = function (
chunkIds, // 传递过来的需要更新 chunkIds ['main']
removedChunks, // 需要移除的 chunksId
removedModules, // 需要移除的模块
promises,
applyHandlers,
updatedModulesList
) {
//
applyHandlers.push(applyHandler);
currentUpdateChunks = {};
// 当前需要移除的模块
currentUpdateRemovedChunks = removedChunks;
currentUpdate = removedModules.reduce(function (obj, key) {
obj[key] = false;
return obj;
}, {});
currentUpdateRuntime = [];
chunkIds.forEach(function (chunkId) {
/**
* 判断 installedChunks 是否已经加载过，加载过则需要进行替换
* loadUpdateChunk 这个方法和获取动态 js 的模块一致
*/
if (__webpack_require__.o(installedChunks, chunkId) && installedChunks[chunkId] !== undefined) {
// 对 promises 进行拉取 js 文件异步处理
promises.push(loadUpdateChunk(chunkId, updatedModulesList));
currentUpdateChunks[chunkId] = true;
} else {
currentUpdateChunks[chunkId] = false;
}
});
if (__webpack_require__.f) {
__webpack_require__.f.jsonpHmr = function (chunkId, promises) {
if (
currentUpdateChunks &&
__webpack_require__.o(currentUpdateChunks, chunkId) &&
!currentUpdateChunks[chunkId]
) {
promises.push(loadUpdateChunk(chunkId));
currentUpdateChunks[chunkId] = true;
}
};
}
};
在等待 loadUpdateChunk 函数执行完成之后就获取到了更新后的模块信息，获取到的模块如下所示
javascript
'use strict';
self['webpackHotUpdatedev_server'](
'main',
{
'./src/demo.js': (__unused_webpack_module, __webpack_exports__, __webpack_require__) => {
__webpack_require__.r(__webpack_exports__);
__webpack_require__.d(__webpack_exports__, {
a: () => /* binding */ a,
});
const a = 32122;
},
},
function (__webpack_require__) {
/* webpack/runtime/getFullHash */
(() => {
__webpack_require__.h = () => '58ac681147d66d9a9cf6';
})();
}
);然后就是对 self['webpackHotUpdatedev_server'] 的函数注入进行执行，具体实现过程如下
javascript
self['webpackHotUpdatedev_server'] = (chunkId, moreModules, runtime) => {
for (var moduleId in moreModules) {
if (__webpack_require__.o(moreModules, moduleId)) {
// 将获取到的最新模块赋值给 currentUpdate
currentUpdate[moduleId] = moreModules[moduleId];
// 判断 currentUpdatedModulesList 是否存在，存在就进行 push
if (currentUpdatedModulesList) currentUpdatedModulesList.push(moduleId);
}
}
// 传递过来时的函数，主要用于替换hash
if (runtime) currentUpdateRuntime.push(runtime);
if (waitingUpdateResolves[chunkId]) {
waitingUpdateResolves[chunkId]();
waitingUpdateResolves[chunkId] = undefined;
}
};8.4、模块删除替换
8.4.1、执行internalApp函数
在获取变化后 js 模块之后就会执行 internalApp 函数，只有是做依赖模块替换。
javascript
function internalApply(options) {
options = options || {};
applyInvalidatedModules();
var results = currentUpdateApplyHandlers.map(function (handler) {
return handler(options); // 执行的是 applyHandler 函数
});
// 执行完成之后设置 undefined
currentUpdateApplyHandlers = undefined;
var errors = results
.map(function (r) {
return r.error;
})
.filter(Boolean);
if (errors.length > 0) {
return setStatus('abort').then(function () {
throw errors[0];
});
}
// Now in "dispose" phase
var disposePromise = setStatus('dispose');
results.forEach(function (result) {
if (result.dispose) result.dispose();
});
// Now in "apply" phase
var applyPromise = setStatus('apply');
var error;
var reportError = function (err) {
if (!error) error = err;
};
var outdatedModules = [];
var onAccepted = function () {
return Promise.all([disposePromise, applyPromise]).then(function () {
// handle errors in accept handlers and self accepted module load
if (error) {
return setStatus('fail').then(function () {
throw error;
});
}
if (queuedInvalidatedModules) {
return internalApply(options).then(function (list) {
outdatedModules.forEach(function (moduleId) {
if (list.indexOf(moduleId) < 0) list.push(moduleId);
});
return list;
});
}
return setStatus('idle').then(function () {
return outdatedModules;
});
});
};
return Promise.all(
results
.filter(function (result) {
return result.apply;
})
.map(function (result) {
return result.apply(reportError);
})
)
.then(function (applyResults) {
applyResults.forEach(function (modules) {
if (modules) {
for (var i = 0; i < modules.length; i++) {
outdatedModules.push(modules[i]);
}
}
});
})
.then(onAccepted);
}8.4.2、执行applyHandler函数
在执行到 currentUpdateApplyHandlers 的处理时实际执行的是 applyHandler 函数
javascript
var results = currentUpdateApplyHandlers.map(function (handler) {
return handler(options); // 执行的是 applyHandler 函数
});applyHandler 函数详解如下
javascript
function applyHandler(options) {
if (__webpack_require__.f) delete __webpack_require__.f.jsonpHmr;
currentUpdateChunks = undefined;
function getAffectedModuleEffects(updateModuleId) {
// 获取到的 id
var outdatedModules = [updateModuleId];
var outdatedDependencies = {};
var queue = outdatedModules.map(function (id) {
// [{ chain: [], id: id }]
return {
chain: [id],
id: id,
};
});
while (queue.length > 0) {
var queueItem = queue.pop(); // 取出 queue
var moduleId = queueItem.id; // 获取 moduleId
var chain = queueItem.chain;
var module = __webpack_require__.c[moduleId]; // 从缓存模块中取出模块，取出的是历史模块
if (!module || (module.hot._selfAccepted && !module.hot._selfInvalidated)) continue;
// 取出来为 false
if (module.hot._selfDeclined) {
return {
type: 'self-declined',
chain: chain,
moduleId: moduleId,
};
}
// 取出来为 false
if (module.hot._main) {
return {
type: 'unaccepted',
chain: chain,
moduleId: moduleId,
};
}
// 遍历 module 的 父模块 parents
for (var i = 0; i < module.parents.length; i++) {
var parentId = module.parents[i]; // 取出 父模块 id
var parent = __webpack_require__.c[parentId]; // 从缓存中获取父模块，判断是否存在
if (!parent) continue;
// 未执行
if (parent.hot._declinedDependencies[moduleId]) {
return {
type: 'declined',
chain: chain.concat([parentId]),
moduleId: moduleId,
parentId: parentId,
};
}
if (outdatedModules.indexOf(parentId) !== -1) continue;
// 执行
if (parent.hot._acceptedDependencies[moduleId]) {
if (!outdatedDependencies[parentId]) outdatedDependencies[parentId] = []; // 设置 { parentId: [] }
addAllToSet(outdatedDependencies[parentId], [moduleId]); // outdatedDependencies： { ./src/index.js : ['./src/demo.js'] }
// 跳出此次 for 循环
continue;
}
// 后面不执行
delete outdatedDependencies[parentId];
outdatedModules.push(parentId);
queue.push({
chain: chain.concat([parentId]),
id: parentId,
});
}
}
return {
type: 'accepted',
moduleId: updateModuleId,
outdatedModules: outdatedModules,
outdatedDependencies: outdatedDependencies,
};
}
function addAllToSet(a, b) {
for (var i = 0; i < b.length; i++) {
var item = b[i];
if (a.indexOf(item) === -1) a.push(item);
}
}
// at begin all updates modules are outdated
// the "outdated" status can propagate to parents if they don't accept the children
var outdatedDependencies = {};
var outdatedModules = [];
var appliedUpdate = {};
var warnUnexpectedRequire = function warnUnexpectedRequire(module) {
console.warn('[HMR] unexpected require(' + module.id + ') to disposed module');
};
for (var moduleId in currentUpdate) {
// 判断当前。moduleId 是否在 currentUpdate，currentUpdate 实际就是 { './src/demo.js': () => {} }
if (__webpack_require__.o(currentUpdate, moduleId)) {
var newModuleFactory = currentUpdate[moduleId]; // 取出模块函数
var result = newModuleFactory
? getAffectedModuleEffects(moduleId) // 当存在时就调用 getAffectedModuleEffects，核心就是获取 result
: {
type: 'disposed',
moduleId: moduleId,
};
/** @type {Error|false} */
var abortError = false;
var doApply = false;
var doDispose = false;
var chainInfo = '';
if (result.chain) {
chainInfo = '\nUpdate propagation: ' + result.chain.join(' -> ');
}
switch (result.type) {
case 'self-declined':
if (options.onDeclined) options.onDeclined(result);
if (!options.ignoreDeclined)
abortError = new Error('Aborted because of self decline: ' + result.moduleId + chainInfo);
break;
case 'declined':
if (options.onDeclined) options.onDeclined(result);
if (!options.ignoreDeclined)
abortError = new Error(
'Aborted because of declined dependency: ' + result.moduleId + ' in ' + result.parentId + chainInfo
);
break;
case 'unaccepted':
if (options.onUnaccepted) options.onUnaccepted(result);
if (!options.ignoreUnaccepted)
abortError = new Error('Aborted because ' + moduleId + ' is not accepted' + chainInfo);
break;
case 'accepted':
if (options.onAccepted) options.onAccepted(result);
doApply = true;
break;
case 'disposed':
if (options.onDisposed) options.onDisposed(result);
doDispose = true;
break;
default:
throw new Error('Unexception type ' + result.type);
}
if (abortError) {
return {
error: abortError,
};
}
if (doApply) {
appliedUpdate[moduleId] = newModuleFactory;
addAllToSet(outdatedModules, result.outdatedModules);
for (moduleId in result.outdatedDependencies) {
if (__webpack_require__.o(result.outdatedDependencies, moduleId)) {
if (!outdatedDependencies[moduleId]) outdatedDependencies[moduleId] = [];
addAllToSet(outdatedDependencies[moduleId], result.outdatedDependencies[moduleId]);
}
}
}
if (doDispose) {
addAllToSet(outdatedModules, [result.moduleId]);
appliedUpdate[moduleId] = warnUnexpectedRequire;
}
}
}
currentUpdate = undefined;
// Store self accepted outdated modules to require them later by the module system
var outdatedSelfAcceptedModules = [];
for (var j = 0; j < outdatedModules.length; j++) {
var outdatedModuleId = outdatedModules[j];
var module = __webpack_require__.c[outdatedModuleId];
if (
module &&
(module.hot._selfAccepted || module.hot._main) &&
// removed self-accepted modules should not be required
appliedUpdate[outdatedModuleId] !== warnUnexpectedRequire &&
// when called invalidate self-accepting is not possible
!module.hot._selfInvalidated
) {
outdatedSelfAcceptedModules.push({
module: outdatedModuleId,
require: module.hot._requireSelf,
errorHandler: module.hot._selfAccepted,
});
}
}
var moduleOutdatedDependencies;
return {
dispose: function () {
currentUpdateRemovedChunks.forEach(function (chunkId) {
delete installedChunks[chunkId];
});
currentUpdateRemovedChunks = undefined;
var idx;
var queue = outdatedModules.slice();
while (queue.length > 0) {
var moduleId = queue.pop();
var module = __webpack_require__.c[moduleId];
if (!module) continue;
var data = {};
// Call dispose handlers
var disposeHandlers = module.hot._disposeHandlers;
for (j = 0; j < disposeHandlers.length; j++) {
disposeHandlers[j].call(null, data);
}
__webpack_require__.hmrD[moduleId] = data;
// disable module (this disables requires from this module)
module.hot.active = false;
// remove module from cache
delete __webpack_require__.c[moduleId];
// when disposing there is no need to call dispose handler
delete outdatedDependencies[moduleId];
// remove "parents" references from all children
for (j = 0; j < module.children.length; j++) {
var child = __webpack_require__.c[module.children[j]];
if (!child) continue;
idx = child.parents.indexOf(moduleId);
if (idx >= 0) {
child.parents.splice(idx, 1);
}
}
}
// remove outdated dependency from module children
var dependency;
for (var outdatedModuleId in outdatedDependencies) {
if (__webpack_require__.o(outdatedDependencies, outdatedModuleId)) {
module = __webpack_require__.c[outdatedModuleId];
if (module) {
moduleOutdatedDependencies = outdatedDependencies[outdatedModuleId];
for (j = 0; j < moduleOutdatedDependencies.length; j++) {
dependency = moduleOutdatedDependencies[j];
idx = module.children.indexOf(dependency);
if (idx >= 0) module.children.splice(idx, 1);
}
}
}
}
},
apply: function (reportError) {
var acceptPromises = [];
// insert new code
for (var updateModuleId in appliedUpdate) {
if (__webpack_require__.o(appliedUpdate, updateModuleId)) {
__webpack_require__.m[updateModuleId] = appliedUpdate[updateModuleId];
}
}
// run new runtime modules
for (var i = 0; i < currentUpdateRuntime.length; i++) {
currentUpdateRuntime[i](__webpack_require__);
}
// call accept handlers
for (var outdatedModuleId in outdatedDependencies) {
if (__webpack_require__.o(outdatedDependencies, outdatedModuleId)) {
var module = __webpack_require__.c[outdatedModuleId];
if (module) {
moduleOutdatedDependencies = outdatedDependencies[outdatedModuleId];
var callbacks = [];
var errorHandlers = [];
var dependenciesForCallbacks = [];
for (var j = 0; j < moduleOutdatedDependencies.length; j++) {
var dependency = moduleOutdatedDependencies[j];
var acceptCallback = module.hot._acceptedDependencies[dependency];
var errorHandler = module.hot._acceptedErrorHandlers[dependency];
if (acceptCallback) {
if (callbacks.indexOf(acceptCallback) !== -1) continue;
callbacks.push(acceptCallback);
errorHandlers.push(errorHandler);
dependenciesForCallbacks.push(dependency);
}
}
for (var k = 0; k < callbacks.length; k++) {
var result;
try {
result = callbacks[k].call(null, moduleOutdatedDependencies);
} catch (err) {
if (typeof errorHandlers[k] === 'function') {
try {
errorHandlers[k](err, {
moduleId: outdatedModuleId,
dependencyId: dependenciesForCallbacks[k],
});
} catch (err2) {
if (options.onErrored) {
options.onErrored({
type: 'accept-error-handler-errored',
moduleId: outdatedModuleId,
dependencyId: dependenciesForCallbacks[k],
error: err2,
originalError: err,
});
}
if (!options.ignoreErrored) {
reportError(err2);
reportError(err);
}
}
} else {
if (options.onErrored) {
options.onErrored({
type: 'accept-errored',
moduleId: outdatedModuleId,
dependencyId: dependenciesForCallbacks[k],
error: err,
});
}
if (!options.ignoreErrored) {
reportError(err);
}
}
}
if (result && typeof result.then === 'function') {
acceptPromises.push(result);
}
}
}
}
}
var onAccepted = function () {
// Load self accepted modules
for (var o = 0; o < outdatedSelfAcceptedModules.length; o++) {
var item = outdatedSelfAcceptedModules[o];
var moduleId = item.module;
try {
item.require(moduleId);
} catch (err) {
if (typeof item.errorHandler === 'function') {
try {
item.errorHandler(err, {
moduleId: moduleId,
module: __webpack_require__.c[moduleId],
});
} catch (err1) {
if (options.onErrored) {
options.onErrored({
type: 'self-accept-error-handler-errored',
moduleId: moduleId,
error: err1,
originalError: err,
});
}
if (!options.ignoreErrored) {
reportError(err1);
reportError(err);
}
}
} else {
if (options.onErrored) {
options.onErrored({
type: 'self-accept-errored',
moduleId: moduleId,
error: err,
});
}
if (!options.ignoreErrored) {
reportError(err);
}
}
}
}
};
return Promise.all(acceptPromises)
.then(onAccepted)
.then(function () {
return outdatedModules;
});
},
};
}返回的 results 的数据结构为
javascript
{
"type": "accepted",
"moduleId": "./src/demo.js", // 更新的模块
"outdatedModules": [ // 过时旧模块
"./src/demo.js"
],
"outdatedDependencies": { // 过时依赖
"./src/index.js": [
"./src/demo.js"
]
}
}在后续实际执行的是根据 result.type 的执行 switch 语句，实际则是执行对应的 accepted 分支
javascript
case "accepted":
if (options.onAccepted) options.onAccepted(result);
doApply = true;
break;这里设置 doApply 为 true 实际就会执行
javascript
if (doApply) {
// 将获取到 newModuleFactory 赋值给 appliedUpdate 对象
appliedUpdate[moduleId] = newModuleFactory;
// 将 outdatedModules 赋值给 outdatedModules
addAllToSet(outdatedModules, result.outdatedModules);
for (moduleId in result.outdatedDependencies) {
if (__webpack_require__.o(result.outdatedDependencies, moduleId)) {
if (!outdatedDependencies[moduleId])
outdatedDependencies[moduleId] = [];
addAllToSet(
outdatedDependencies[moduleId],
result.outdatedDependencies[moduleId]
);
}
}
}详细见下面 debugger 图解
8.4.3、执行dispose函数
javascript
// 这里返回 results 为 [{ dispose: f(), apply: f() }]
results.forEach(function (result) {
if (result.dispose) result.dispose();
});执行返回的 results 的 dispose 函数，主要是移除旧模块的引用。
javascript
dispose: function () {
// 从installedChunk中删除要移除的chunk
currentUpdateRemovedChunks.forEach(function (chunkId) {
delete installedChunks[chunkId];
});
currentUpdateRemovedChunks = undefined;
var idx;
var queue = outdatedModules.slice(); //获取一个新数组 []
while (queue.length > 0) {
var moduleId = queue.pop(); // 取出 moduleId
var module = __webpack_require__.c[moduleId]; // 取出缓存模块，旧模块
if (!module) continue;
var data = {};
// Call dispose handlers
var disposeHandlers = module.hot._disposeHandlers;
for (j = 0; j < disposeHandlers.length; j++) {
disposeHandlers[j].call(null, data);
}
__webpack_require__.hmrD[moduleId] = data;
// 将 active 设置 false，表示禁用模块
module.hot.active = false;
// 从缓存中删除模块
delete __webpack_require__.c[moduleId];
// when disposing there is no need to call dispose handler
delete outdatedDependencies[moduleId];
// remove "parents" references from all children
for (j = 0; j < module.children.length; j++) {
// 获取当前模块的子模块，
var child = __webpack_require__.c[module.children[j]];
if (!child) continue;
// 再从子模块的 parents 属性中查找当前 moduleId，如果能找到，则需要删除
idx = child.parents.indexOf(moduleId);
if (idx >= 0) {
child.parents.splice(idx, 1);
}
}
}
// remove outdated dependency from module children
var dependency;
for (var outdatedModuleId in outdatedDependencies) {
// { "./src/index.js": [ "./src/demo.js" ] }
if (__webpack_require__.o(outdatedDependencies, outdatedModuleId)) {
module = __webpack_require__.c[outdatedModuleId]; // 获取到的是 ./src/index.js 模块
if (module) {
// 获取到的旧依赖
moduleOutdatedDependencies = outdatedDependencies[outdatedModuleId]; // [ "./src/demo.js" ]
for (j = 0; j < moduleOutdatedDependencies.length; j++) {
dependency = moduleOutdatedDependencies[j]; // 取出来的 "./src/demo.js" moduleId
idx = module.children.indexOf(dependency); // 在 ./src/index.js 查找子模块中是否有 "./src/demo.js"，
if (idx >= 0) module.children.splice(idx, 1); // 如果存在就删除
}
}
}
}
},有四种情况下的模块移除：
- 第一种是 currentUpdateRemovedChunks 直接移除的 chunk ，没有更新操作而是直接删除的模块。
- 第二种是从
__webpack_require__.c缓存的模块移除本模块。 - 第三种是移除的模块的中存在子模块对该模块的引用时，需要将子模块的对该模块引用删除。
- 第四种是移除的模块的父模块对该模块的引用，需要从父模块中将该模块的引用删除。
8.4.4、执行apply函数
javascript
apply: function (reportError) {
var acceptPromises = [];
// 注入新的的模块
for (var updateModuleId in appliedUpdate) {
if (__webpack_require__.o(appliedUpdate, updateModuleId)) {
__webpack_require__.m[updateModuleId] = appliedUpdate[updateModuleId];
}
}
// 执行新的 runtime 函数，实际就是在更新本地 hash
for (var i = 0; i < currentUpdateRuntime.length; i++) {
currentUpdateRuntime[i](__webpack_require__);
}
// call accept handlers
for (var outdatedModuleId in outdatedDependencies) {
// { "./src/index.js": [ "./src/demo.js" ] }
if (__webpack_require__.o(outdatedDependencies, outdatedModuleId)) {
var module = __webpack_require__.c[outdatedModuleId]; // 获取到 ./src/index.js 模块
if (module) {
moduleOutdatedDependencies = outdatedDependencies[outdatedModuleId]; // [ "./src/demo.js" ]
var callbacks = [];
var errorHandlers = [];
var dependenciesForCallbacks = [];
for (var j = 0; j < moduleOutdatedDependencies.length; j++) {
var dependency = moduleOutdatedDependencies[j]; // "./src/demo.js"
var acceptCallback = module.hot._acceptedDependencies[dependency]; // accept回调函数
var errorHandler = module.hot._acceptedErrorHandlers[dependency];
if (acceptCallback) {
if (callbacks.indexOf(acceptCallback) !== -1) continue;
callbacks.push(acceptCallback); // 回调函数
errorHandlers.push(errorHandler);
dependenciesForCallbacks.push(dependency);
}
}
for (var k = 0; k < callbacks.length; k++) {
var result;
try {
// 执行 accept 回调函数
result = callbacks[k].call(null, moduleOutdatedDependencies);
} catch (err) {
if (typeof errorHandlers[k] === 'function') {
try {
errorHandlers[k](err, {
moduleId: outdatedModuleId,
dependencyId: dependenciesForCallbacks[k],
});
} catch (err2) {
if (options.onErrored) {
options.onErrored({
type: 'accept-error-handler-errored',
moduleId: outdatedModuleId,
dependencyId: dependenciesForCallbacks[k],
error: err2,
originalError: err,
});
}
if (!options.ignoreErrored) {
reportError(err2);
reportError(err);
}
}
} else {
if (options.onErrored) {
options.onErrored({
type: 'accept-errored',
moduleId: outdatedModuleId,
dependencyId: dependenciesForCallbacks[k],
error: err,
});
}
if (!options.ignoreErrored) {
reportError(err);
}
}
}
if (result && typeof result.then === 'function') {
acceptPromises.push(result);
}
}
}
}
}
return Promise.all(acceptPromises)
.then(onAccepted)
.then(function () {
return outdatedModules;
});
},其中的 accept 的回调函数如下
javascript
__WEBPACK_OUTDATED_DEPENDENCIES__ => { /* harmony import */ _demo__WEBPACK_IMPORTED_MODULE_0__ = __webpack_require__(/*! ./demo.js */ "./src/demo.js");
return (() => {
render();
})(__WEBPACK_OUTDATED_DEPENDENCIES__); }
